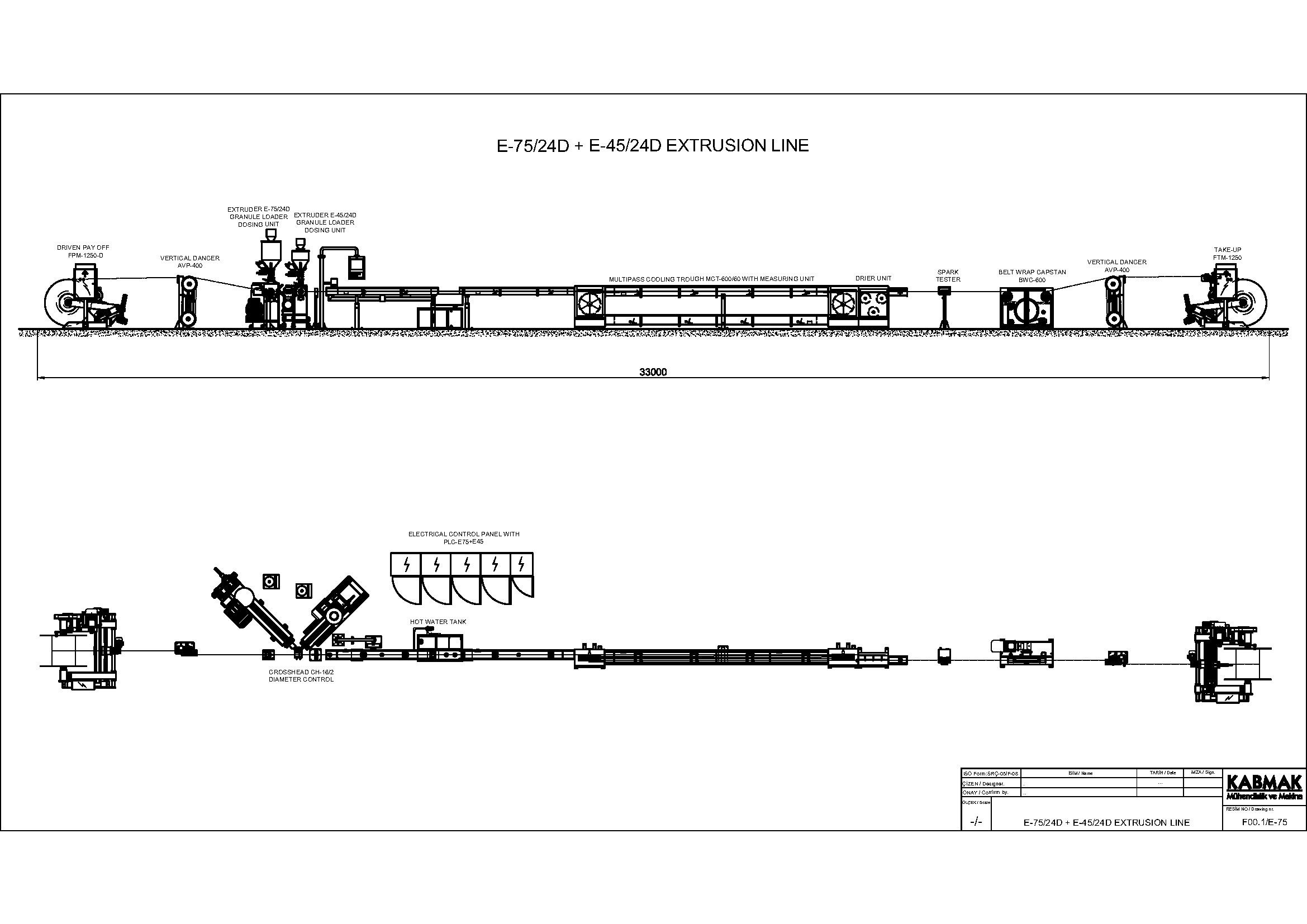

E75 + E45 EXTRUSION LINE

600 m/min

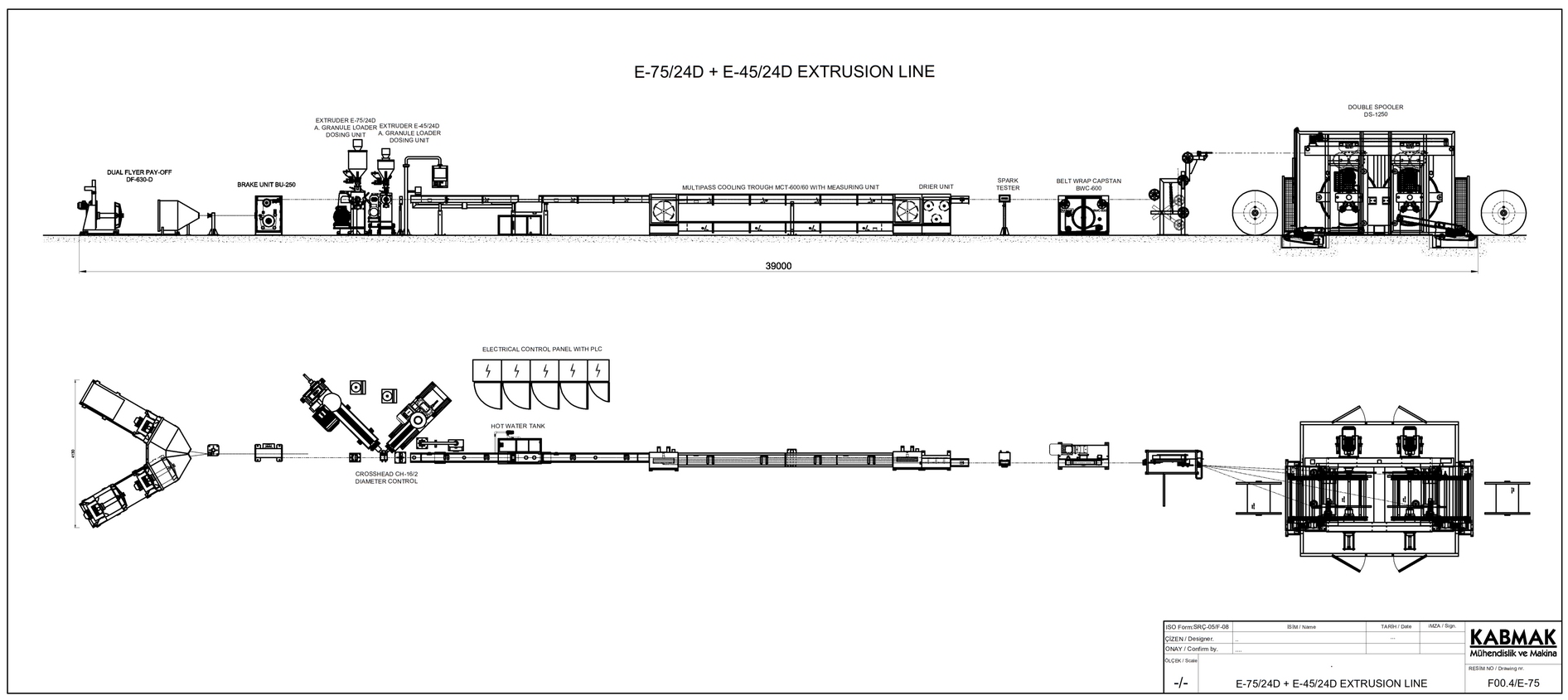

E75 + E45 EXTRUSION LINE

1000 m/min nonstop production

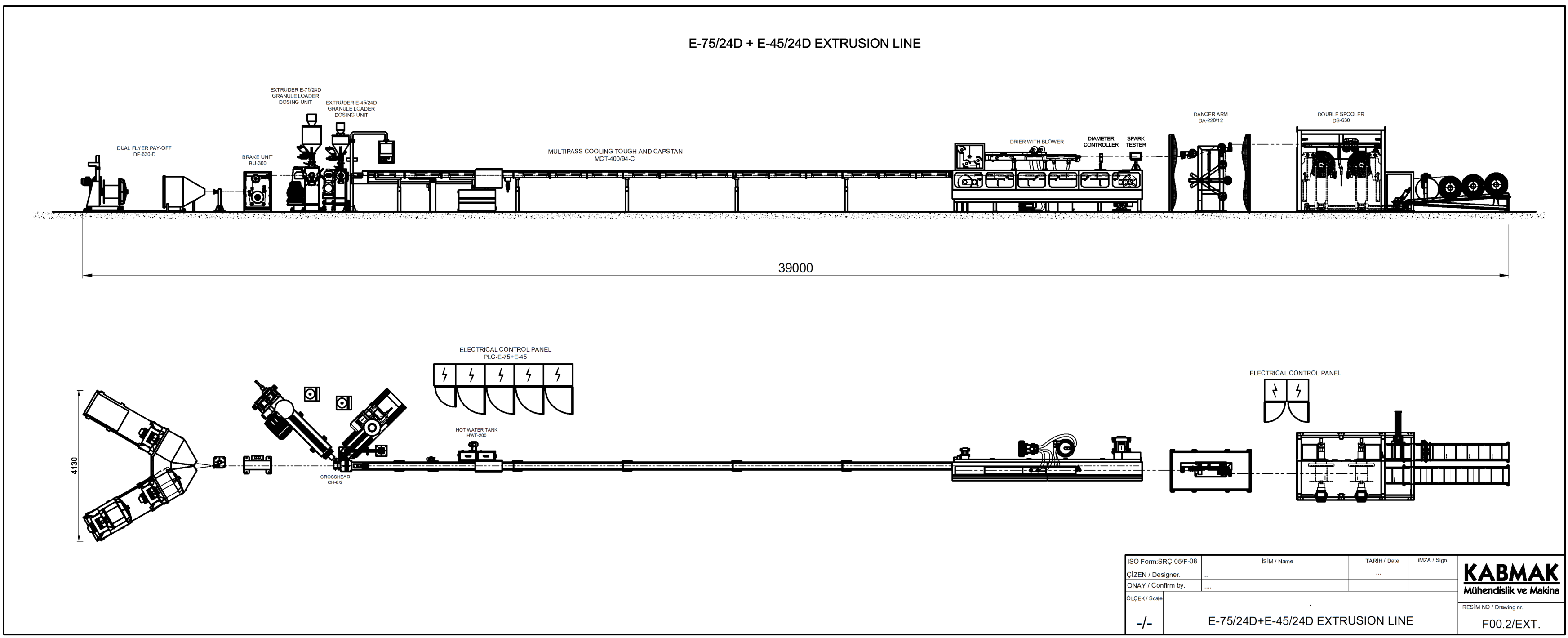

E90 + E45 EXTRUSION LINE

1000 m/min nonstop production

Application

Insulating or Sheeting,

Solid, Natural+Skin or

Yellow-green Striping

Insulating,

Solid, Natural+Skin or

Yellow-green Striping

Insulating or Sheeting,

Solid, Natural+Skin or

Yellow-green Striping

Reel Change

Paused production

with manual reel change

Nonstop production

with automatic reel change

Nonstop production

with automatic reel change

Extrusion Material

PVC, PE, XLPE and HFFR

PVC, PE, XLPE and HFFR

PVC, PE, XLPE and HFFR

Conductor Section

0,50 mm² up to 35 mm² single core

4 x 6 mm² multicore

0,50 mm² up to 10 mm² single core

0,50 mm² up to 35 mm² single core

Cable Diameter

from Ø1,2 up to Ø16 mm.

from Ø1,2 up to Ø6 mm

from Ø1,2 up to Ø10 mm

Linear Speed

max. 600 m/min.

max. 1000 m/min.

max. 1000 m/min.

Pay-Off Reels

Ø630 – Ø1250 mm

Ø630 mm

Ø630 mm

Take-Up Reels

Ø630 – Ø1250 mm

Ø630 mm

Ø630 – Ø1250 mm

Production Control

Diameter Control and Sparktester

Diameter Control and Sparktester

Diameter Control and Sparktester

Line control system

PLC controlled with hanged touch panel

PLC controlled with hanged touch panel

PLC controlled with hanged touch panel

Line Length

33 m

42 m

50 m

Optional equipment

Powdering Unit

Hot water-cooling section

Powdering Unit

Hot water-cooling section

Hot / Cold Diameter Control

Pay-Off for 1250 reel

Powdering Unit

Hot water-cooling section

Hot / Cold Diameter Control

.

.

.

.
